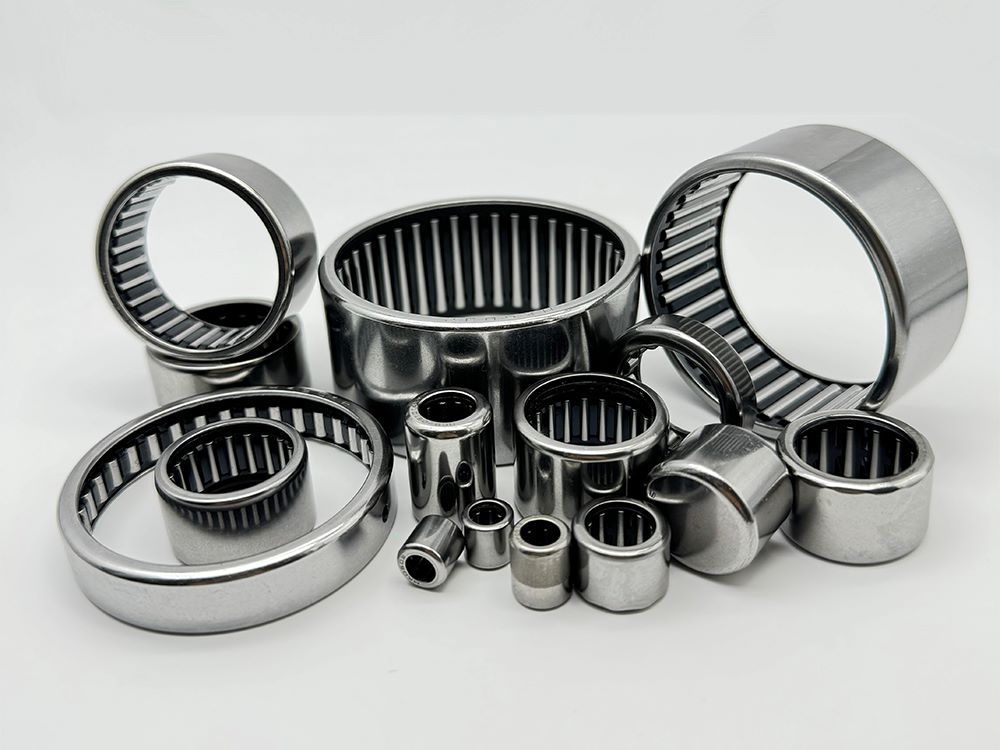

The stamped outer ring needle roller bearing is made of high-quality steel plate through precision stamping. The outer ring has a thin wall, small radial cross-sectional area, large bearing capacity, small inertia, and economical manufacturing. It is used for installation space limitations and the shell hole is not suitable as a raceway. After the bearing is pressed into the seat hole, it does not need to be axially positioned. Stamped outer ring needle roller bearings generally use the shaft diameter as the inner raceway, but suitable LR type inner rings can also be selected for use according to usage conditions. Stamped outer ring needle roller bearings mainly have two types of structures: those with cages and those with fully loaded needles. Each structure has a perforated type and a sealed type, while those with cages have forms such as single-sided sealing rings and double-sided sealing rings. The fully loaded needle roller structure has a large load-bearing capacity

KYU can provide standard and non-standard metric sizes. The British series stamped outer ring needle roller bearings, as well as high-precision stamped outer ring needle roller bearings with oil holes, double row needle rollers, nylon cages, inner rings, sealing rings, and other special requirements (special technical requirements when ordering)

Stamped outer ring needle roller bearings are formed by precision stamping of thin steel plates, with extremely low profile height and large load capacity, making them particularly suitable for large-scale products that require economic efficiency

The outer ring of this type of needle roller bearing adopts a static fit with the bearing housing, and does not require an axial fixing device. Even under high-speed and heavy load conditions, the bearing function can be fully maintained. In addition, due to its large storage capacity, lubricating grease can be left unused for a long time

One end of the sealed bearing is a sealed type, suitable for the shaft end and capable of withstanding small axial forces

Stamped outer ring needle roller bearings include: HK TA TLA perforated type with cage stamped outer ring needle roller bearings, BK sealed type with cage stamped outer ring needle roller bearings, SCE, BA, J, JH stamped outer ring needle roller bearings (British series), one-way needle roller bearings HF/RC, HFL/RCB series

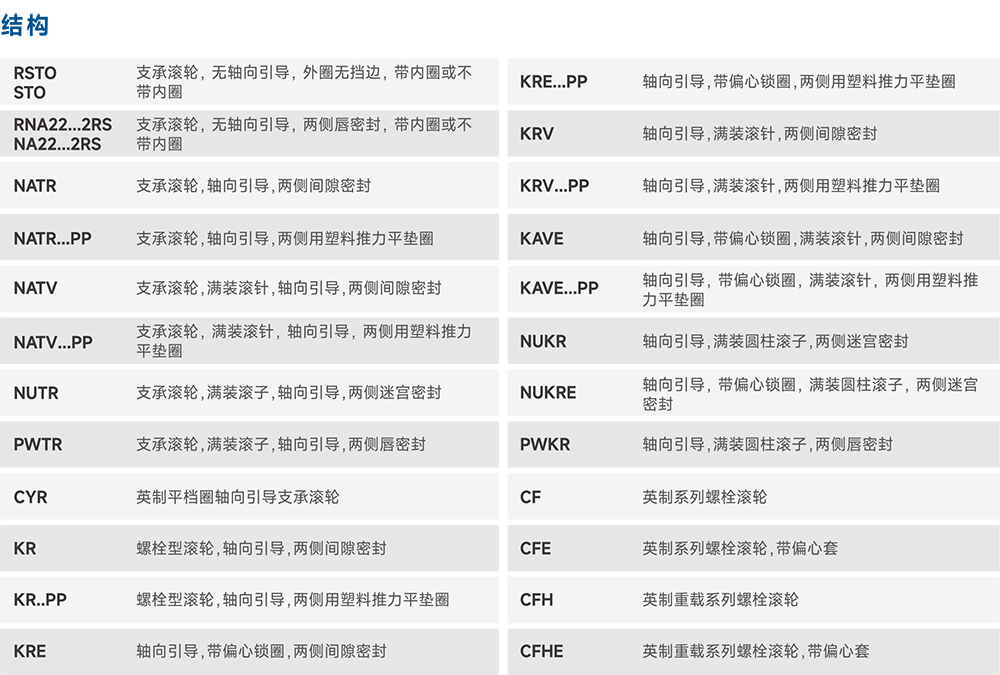

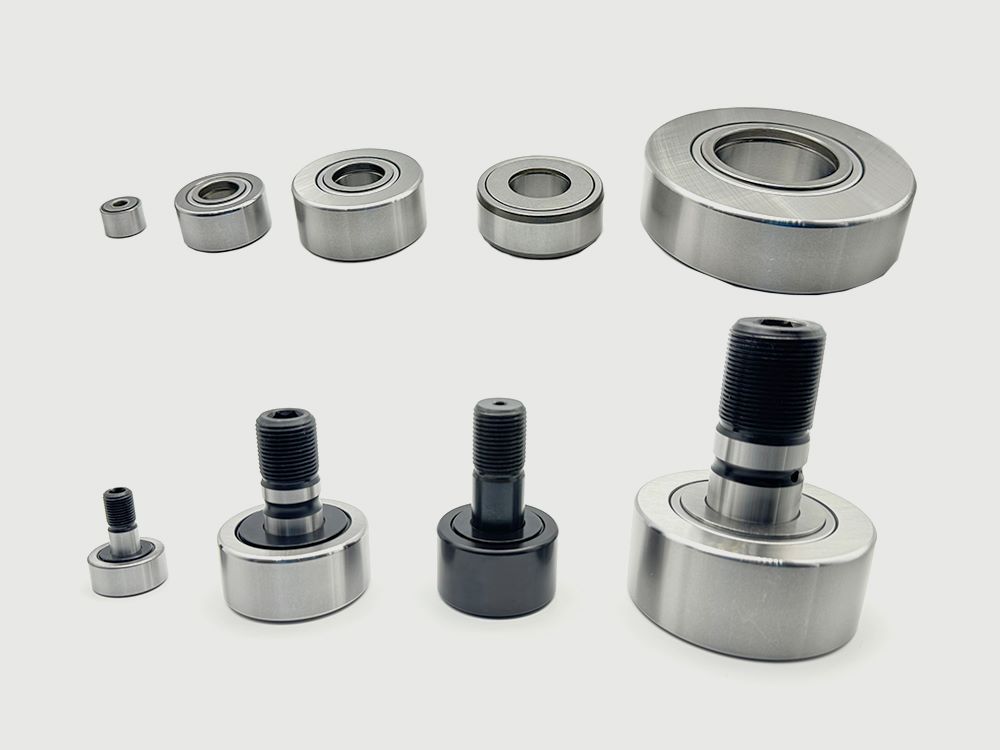

KYU roller bearings are bearing units composed of machined thick walled outer rings, needle or cylindrical rollers, or cage guided or fully loaded rolling element groups, inner rings or bolts, and seals. They can withstand high radial loads and certain impact loads, with compact and diverse structures, high rotational accuracy, diverse varieties, wide adaptability, and easy installation. Widely used in machine tools, metallurgical machinery, textile machinery, printing machinery and other mechanical equipment, as well as processing assembly lines

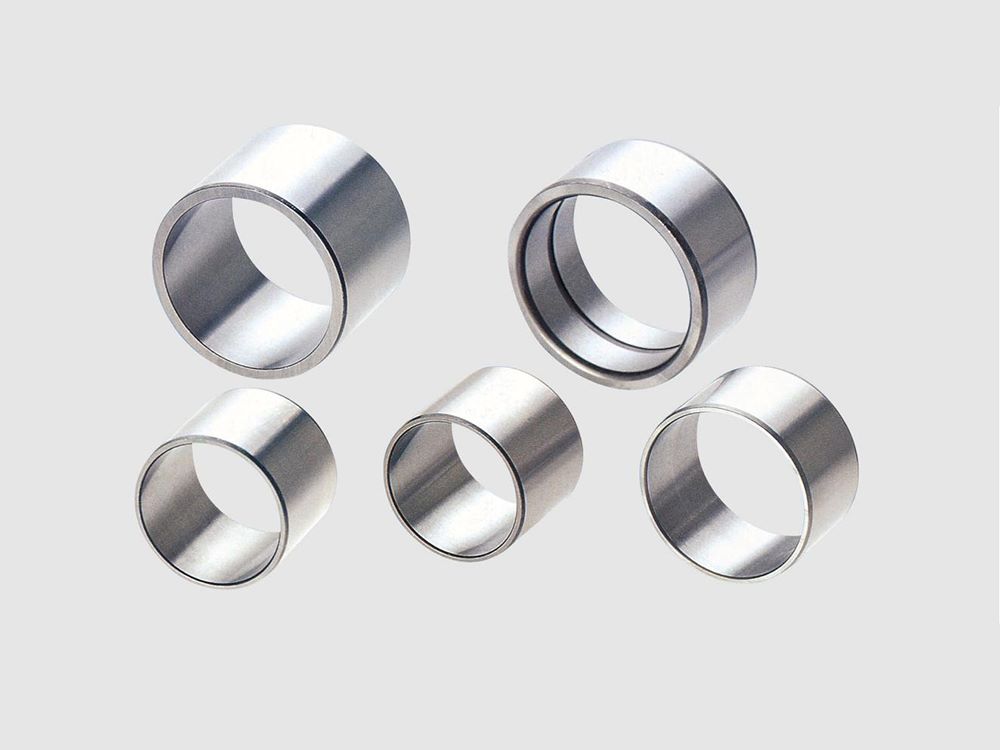

The inner ring is used as a raceway for rolling bearings, and when used in conjunction with needle roller bearings, it has a normal clearance and is interchangeable. The IR series inner rings have undergone heat treatment and precision machining. The LR series inner rings have undergone heat treatment and grinding, but the end face chamfers are not ground. Our company can also produce ordinary and high-precision inner rings, and produce various types of imperial series inner rings

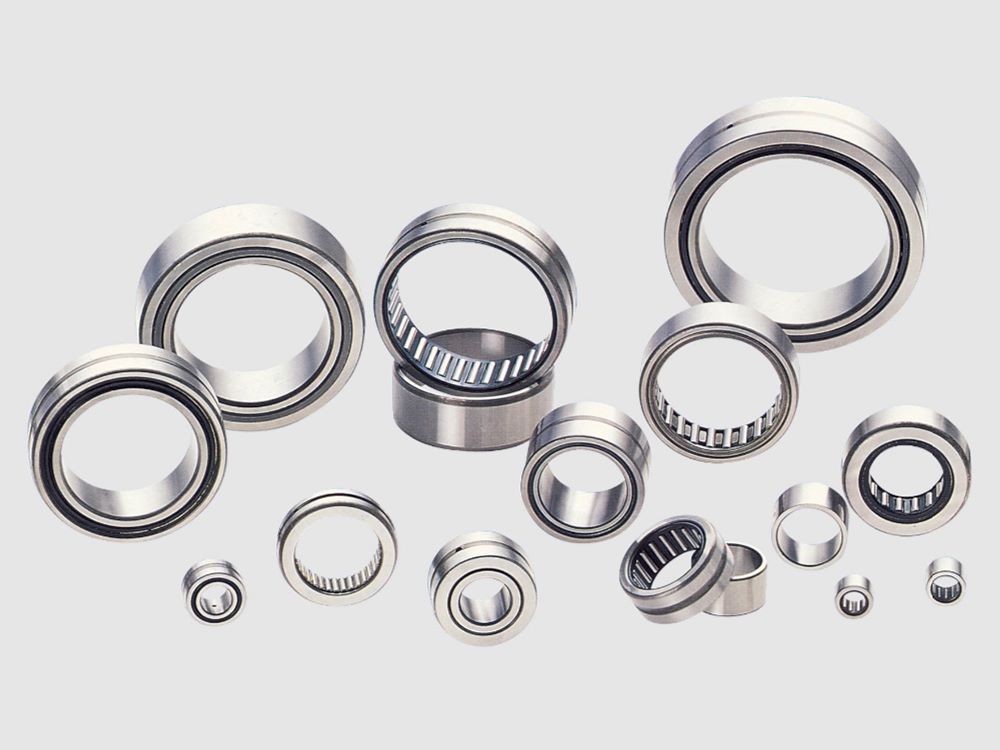

Solid ring needle roller bearings have a compact structure, small radial size, and large load capacity, making them suitable for components with limited radial contour size. They are also widely used in situations where the shaft or shell has swinging motion. Needle roller bearings can generally only withstand radial loads and cannot withstand axial loads. When there is axial load, it should be used in combination with other bearings, which do not limit the axial displacement of the shaft or casing. The limit speed of needle roller bearings is relatively low. When the main engine speed is high, needle roller bearings with cages should be selected as much as possible. Compared with other types of rolling bearings, needle roller bearings have the largest load capacity and higher rigidity, but also larger friction torque, when the radial size is the same

This type of bearing has multiple structures and size series, requiring the surface hardness, machining accuracy, and surface roughness of the journal or shell rolling surface to be the same as the bearing ring. The assembled G2 grade roller needles have a diameter variation of 2 for grouping batches μ Within m, except for fully loaded needle roller bearings, high rigidity cages are used to correctly guide the needle rollers parallel to the axis

Needle roller bearings without inner rings are suitable for components with limited radial dimensions. Due to the absence of inner rings, the surface of the journal that matches them directly serves as the rolling surface. The surface hardness of the bearing is required to be no less than HRC60, and the surface roughness Ra value should not exceed 0.63um. This type of bearing does not limit the axial displacement of the shaft or shell, and its maximum speed is relatively high

Needle roller bearing with inner ring NA NKI type

This type of bearing can be installed separately with the inner ring, outer ring, complete set of rolling needles, and retainer due to the lack of retaining edges on the inner ring, without limiting the axial displacement of the shaft or housing. Due to the use of a cage to separate the needle rollers, friction is reduced, making it suitable for use in components with higher rotational speeds

A cylindrical roller bearing is a complete unit composed of a cylindrical roller belt cage guided by the inner and outer rings of the bearing and the retaining edge. Cylindrical roller bearings are usually distinguished by different retaining edges. Our company produces cylindrical roller bearings with N, NU, NJ, NUP, NF, SL types, as well as SL04 50... PSL4... PP with stop ring grooves, and NUP with stop ring grooves N. NUP R-type cylindrical roller bearings

This type of bearing has high stiffness and is generally only used to withstand radial loads with large load capacity. Except for fully loaded roller bearings, high rigidity cages are used to correctly guide the rollers parallel to the axis

The various structures of cylindrical roller bearings are distinguished by the differences in the retaining edges. The NU type cylindrical roller bearing has two retaining edges and an inner ring without retaining edges on its outer ring. N-type cylindrical roller bearings have two retaining edges on the inner ring and no retaining edges on the outer ring NU and N-type cylindrical roller bearings are both radial bearings, and the inner and outer rings can be separated, making them easy to install and disassemble. The NJ type bearing has a double gear edge on the outer ring and a single gear edge on the inner ring; The N F type bearings have an inner ring with double retaining edges and an outer ring with a single retaining edge, which can withstand unidirectional axial forces. The NUP cylindrical roller bearing, as a fixed bearing, can withstand axial forces in alternating directions. This type of bearing has two retaining edges and a retaining ring on the outer ring

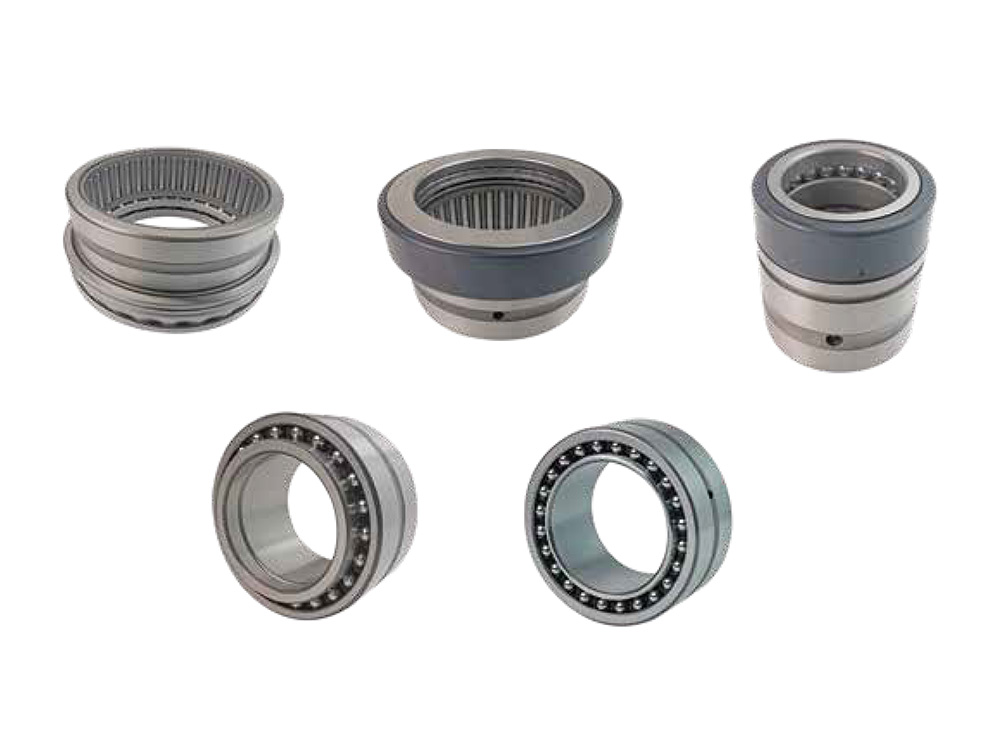

The combination of a radial needle roller bearing and a thrust bearing component is a unidirectional or bidirectional bearing

Set a hardened and ground shaft as the raceway

Used in applications where the shaft cannot be used as a rolling bearing raceway

The axial load cannot exceed 25% of the radial load

The axial static load safety factor So should be greater than 1.5

Two sets of bearings must be installed opposite each other to support axial loads with alternating directions

The axial load cannot exceed 25% of the radial load

The axial static load safety factor So should be greater than 1.5

The bearing allows for axial movement of 0.08~0.25mm

Narrow inner ring components have larger apertures. If K6 level shaft tolerance is used, the result is a press fit

The two inner ring components must be axially clamped together

For combination needle roller bearings without inner rings, the shaft must be designed to be used as a rolling bearing raceway, or an IR or LR series inner ring must be used

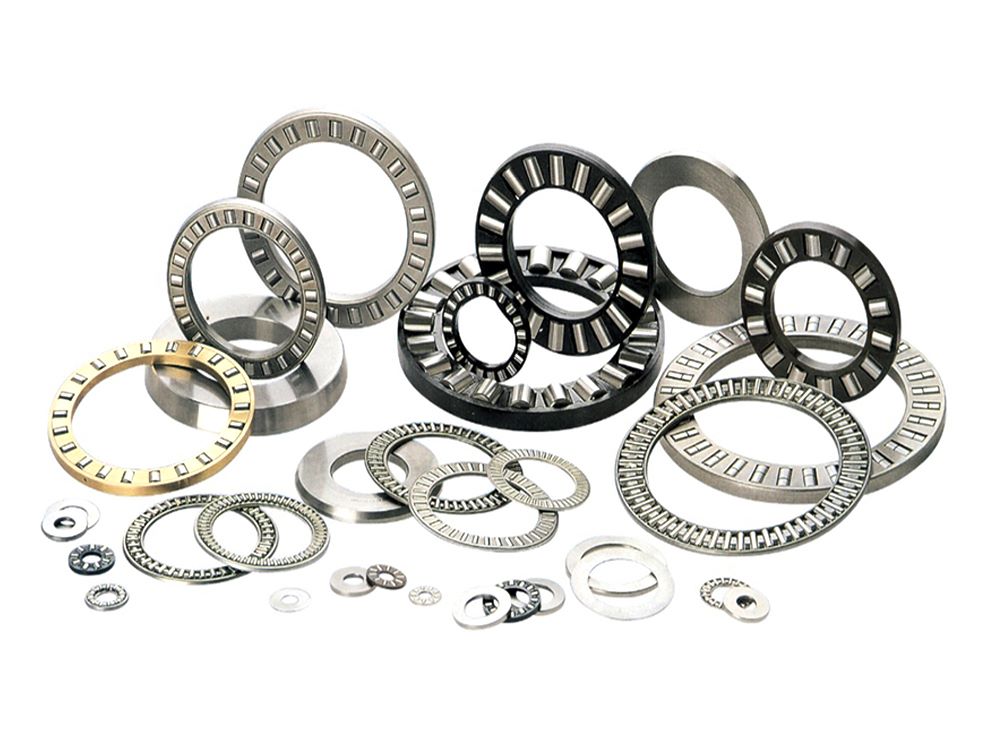

Thrust needle roller bearing or thrust cylindrical roller bearing is a type of roller bearing equipped with a cage between a set of raceway washers. The cage reliably guides and grips a large number of rolling elements, with only very small differences between the rolling elements in the same component. Thrust needle roller bearings or thrust cylindrical bearings can only support axial loads in one direction, and can be used as a bearing configuration with good rigidity and minimal axial space occupation

The AS series thrust washers are stamped from high-quality spring steel, with a thickness of 1mm, and are hardened and polished. When the surface rigidity of adjacent components is good but not suitable for use as raceways, the AS series gasket fully plays its role

The GS, WS, LS series thrust washers are made of bearing steel and have undergone quenching treatment. The outer surface of the seat ring GS and the inner surface of the shaft ring WS are made by grinding. LS is a particularly economical vehicle with both exterior and interior surfaces

The ZS series thrust washers are available in our company. When components use bearing configurations that require bi-directional positioning, our company can provide the ZS middle ring series, which can be axially positioned or seat hole positioned

The needle roller and cage assembly is an independent bearing element, where each needle roller is precisely guided and held by the cage. It achieves a bearing design with high load capacity and high rigidity in the smallest structural space. The wide spacing between the two guiding surfaces of the cage ensures precise guidance of the needle roller and cage components. The needle roller and cage components are suitable for use as raceways for shafts and seat holes. Under shafts and seat raceways with high dimensional and geometric accuracy, the highest rotational accuracy can be achieved

The working clearance of the shaft depends on the tolerance of the inner and outer raceways, the difference in the needle roller group, and the working temperature

Centripetal needle roller and cage assembly K, K D-type, this type of bearing only has a set of radial needle rollers and cage components, with a small outer diameter size, suitable for components with particularly limited radial dimensions, and used to withstand radial loads. K. ZW. K… ZWVD type is a double row radial needle roller and cage assembly. Due to the absence of a ring, the matching journal surface and housing hole surface are directly used as rolling surfaces, requiring a surface hardness of HRC60 and a surface roughness Ra value of no more than 0 63um. To meet the requirements of the host, this type of bearing can be machined into a split type for easy assembly and disassembly K. . D represents partition, single column K. ZWVD represents partition, double column

K single row centripetal needle roller and cage assembly

K… ZW double row centripetal needle roller and cage assembly

K… D split single row centripetal needle roller and cage assembly

K… ZWD split double row centripetal roller and cage assembly
